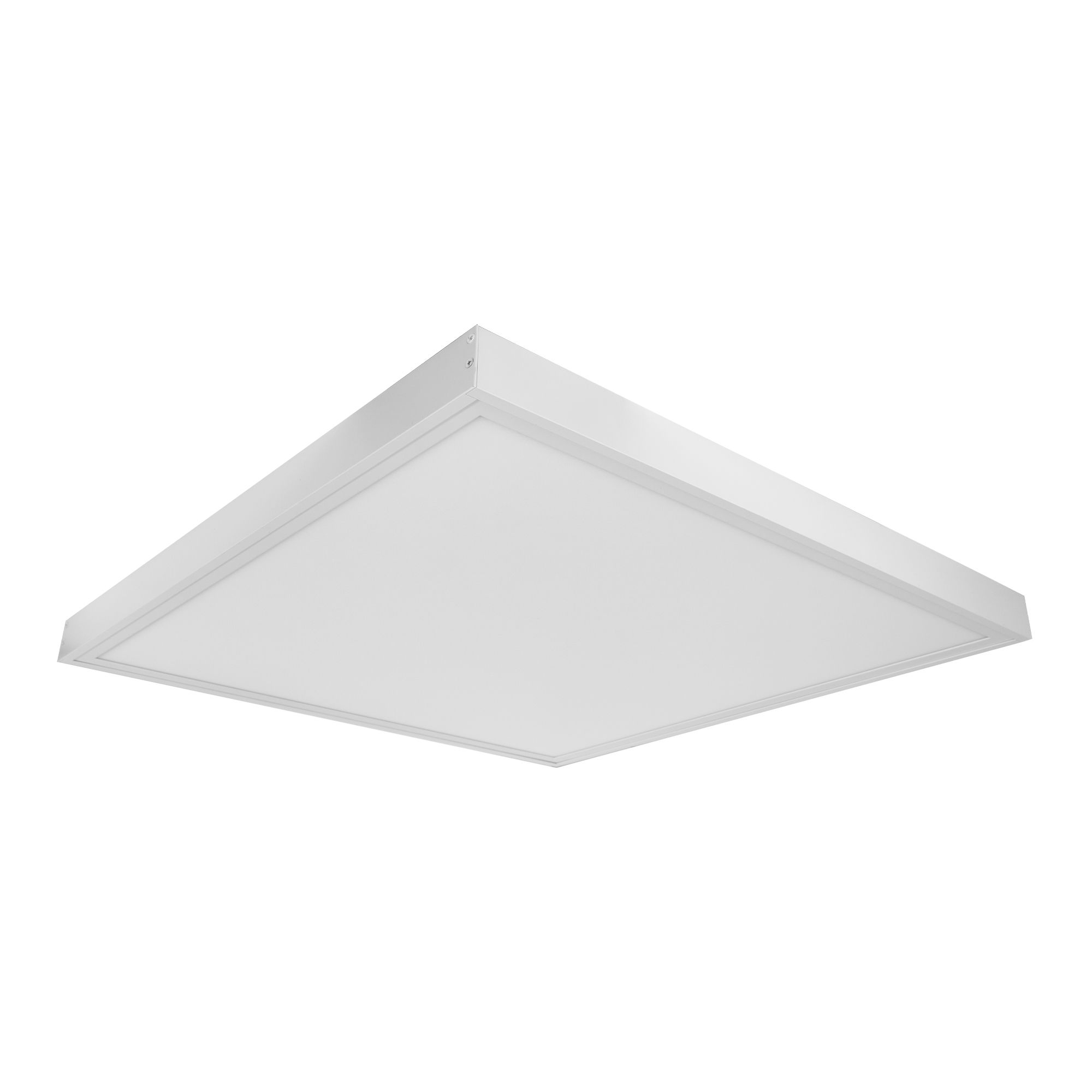

LED Panel UGR 19 24V 600 x 600 mm Surface Frame Kit 4000K Cool White 40W

Description

The LED Panel Light Surface Frame range features the latest in LED technology. The panels are suitable for commercial and domestic applications, included with the LED Panel is a surfaced mounting frame for ceilings in which panels can't be recessed into the ceiling. These panels are ideally suited for office lighting and for meeting rooms and corridors.

Key Features

IP40 rated

LED type: SMD2835 160lm/W (110lm/W in the actual fitting)

Light emitting angle: 120°

No Flicker

LM80

CRI80

UGR<19

Diffuser plate with light transmittance of 98% (1.5mm thickness)

Different installations and applications possible

Specification

General
Colour	White
Construction	Aluminium
IP Rating	IP40


LED Type	SMD2835
Operating Temperature	-20°C +40°C

Dimensions
Height	50mm
Length	600mm
Width	600mm

Electrical
Energy Efficiency Rating	A+
Maximum Wattage	40W
Voltage	24V DC

Light Characteristics
Beam Angle	120°
Colour Rendering Index	80
Colour Temperature	4000K Cool White
Lumens	4000 lm
Lumens Per Watt	100 lm/W

Downloads

Technical

UGR LED Panel Instructions

Specification Sheet
