Anything from a short linear run of light for under cabinet or plinth lighting, shelving or back lighting mirrors to large scale applications such as low level lighting in corridors, dropped ceilings, cove lighting, doorways, handrails and staircases can be achieved. A wide range of extrusions and diffusers are available to suit any location and produce different effects. For example a continuous, seamless line of light can be created when mounted in Maxi extrusions combined with Liger diffusers.
LED Tape Ultra Seamless carries an IP65 rating making it suitable for bathrooms and kitchens. We would recommend using this tape with our Liger diffusers and 12mm deep maxi channels to achieve a line of light with no dark spots.

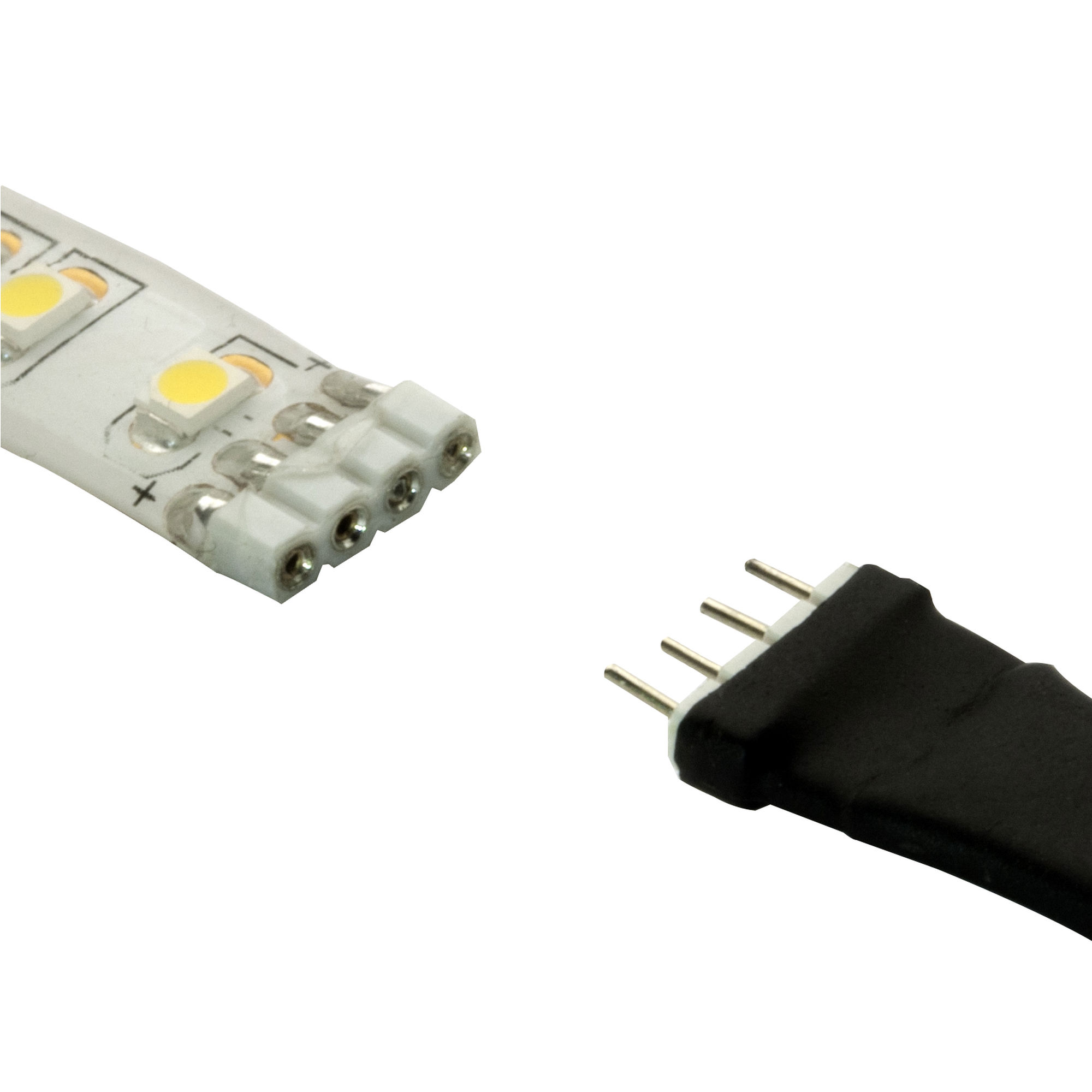

These 1 meter LED tapes can be extended to a maximum of 10 meters, when using additional 1 meter reels and pin connectors, making it ideal for indirect lighting such as shadow gaps. Please note that if you are joining a multitude of the 1 meter reels together, the joins between the tapes may show dark spots depending on what extrusion they have been housed in, or how it is to be installed. For certain installations, we may advise using longer reels instead.
For lengths of more than 10 meters, you would need to put the extra tape on an additional power cord and position them one after another, wiring the power cords back to the driver in parallel. This LED tape also has a cut mark every 25mm, meaning you can achieve precise lengths for your installation. The maximum distance between the power supply and LED tape is 10 meters. We recommend using 1.5mm² cable. The maximum total length is 20 meters for the LED tape and power supply combined.
This LED tape is dimmable and we recommend using the Triac LED Dimming Driver. Ensure the dimming driver you use exceeds the total wattage of the LED Tape.
General | |
Construction | Plastic |
Dimmable | Yes |
IP Rating | IP65 |
LED Chip | SMD 3014 |
LED per Tape | 240 |
Dimensions | |
Cut Length | 25mm |
Length | 1m |
Width | 10mm |
Electrical | |
Maximum Wattage | 6W |
Voltage | 24V DC |
Light Characteristics | |
Colour Rendering Index | 80 |
Colour Temperature | 3000K Warm White |
Lumens | 500 lm |
Lumens Per Metre | 500 lm/m |
Lumens Per Watt | 83 lm/W |
Watts Per Metre | 6 W/m |
3545 in Stock
764 in Stock
31 in Stock
34 in Stock
125 in Stock
This item
LED Strip Flexible Tape Ultra Seamless 1m (240xSMD 3014 LEDs/m) 24V 6W 3000K Warm White
Q4403
TAPEC240 1M WW
115 in Stock
20% Off
|
LED Strip Flexible Tape Ultra Seamless 10m (240xSMD 3014 LEDs/m) 24V 60W (1m=6W) 3000K Warm White
Q503C
TAPEC240 10M WW
18 in Stock
20% Off
|
LED Strip Flexible Tape Ultra Seamless 1m (240xSMD 3014 LEDs/m) 24V 6W 2700K Warm White
Q4404
TAPEC240 1M IN
available to order
20% Off
|
LED Strip Flexible Tape Ultra Seamless 5m (240xSMD 3014 LEDs/m) 24V 30W (1m=6W) 4000K Cool White
Q440A
TAPEC240 5M CW
55 in Stock
20% Off
|
LED Strip Flexible Tape Ultra Seamless 1m (240xSMD 3014 LEDs/m) 24V 6W 4000K Cool White
Q4405
TAPEC240 1M CW
146 in Stock
20% Off
|
LED Strip Flexible Tape Ultra Seamless 10m (240xSMD 3014 LEDs/m) 24V 60W (1m=6W) 4000K Cool White
Q5160
TAPEC240 10M CW
33 in Stock
20% Off
|
LED Strip Flexible Tape Ultra Seamless 3m (240xSMD 3014 LEDs/m) 24V 18W (1m=6W) 4000K Cool White
Q5789
TAPEC240 3M CW
24 in Stock
20% Off
|
LED Strip Flexible Tape Ultra Seamless 10m (240xSMD 3014 LEDs/m) 24V 60W (1m=6W) 2700K Warm White
Q503B
TAPEC240 10M IN
19 in Stock
20% Off
|
LED Strip Flexible Tape Ultra Seamless 3m (240xSMD 3014 LEDs/m) 24V 18W (1m=6W) 2700K Warm White
Q5037
TAPEC240 3M IN
121 in Stock
20% Off
|
LED Strip Flexible Tape Ultra Seamless 3m (240xSMD 3014 LEDs/m) 24V 18W (1m=6W) 3000K Warm White
Q5039
TAPEC240 3M WW
125 in Stock
20% Off
|
LED Strip Flexible Tape Ultra Seamless 5m (240xSMD 3014 LEDs/m) 24V 30W (1m=6W) 2700K Warm White
Q4409
TAPEC240 5M IN
80 in Stock
20% Off
|
LED Strip Flexible Tape Ultra Seamless 5m (240xSMD 3014 LEDs/m) 24V 30W (1m=6W) 3000K Warm White
Q4408
TAPEC240 5M WW
183 in Stock
20% Off
|
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
Length | 1m | 10m | 1m | 5m | 1m | 10m | 3m | 10m | 3m | 3m | 5m | 5m |
Maximum Wattage | 6W | 60W (10 x 6W) | 6W | 30W (5 x 6W) | 6W | 60W (10 x 6W) | 18W (3 x 6W) | 60W (10 x 6W) | 18W (3 x 6W) | 18W (3 x 6W) | 30W (5 x 6W) | 30W (5 x 6W) |
Colour Temperature | 3000K Warm White | 3000K Warm White | 2700K Warm White | 4000K Cool White | 4000K Cool White | 4000K Cool White | 4000K Cool White | 2700K Warm White | 2700K Warm White | 3000K Warm White | 2700K Warm White | 3000K Warm White |
Lumens | 500 lm | 5000 lm | 500 lm | 2500 lm | 500 lm | 5000 lm | 1500 lm | 5000 lm | 1500 lm | 1500 lm | 2500 lm | 2500 lm |
