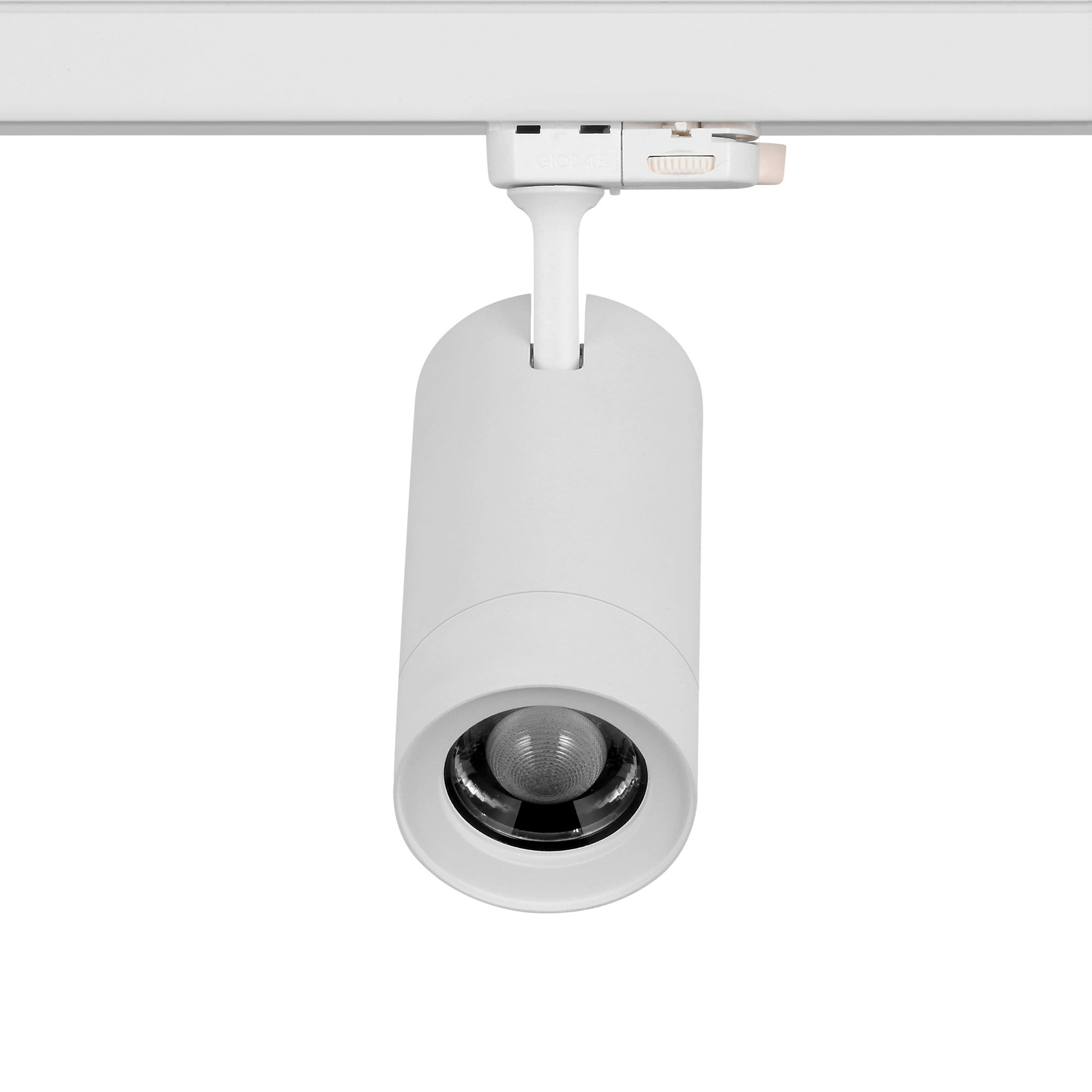

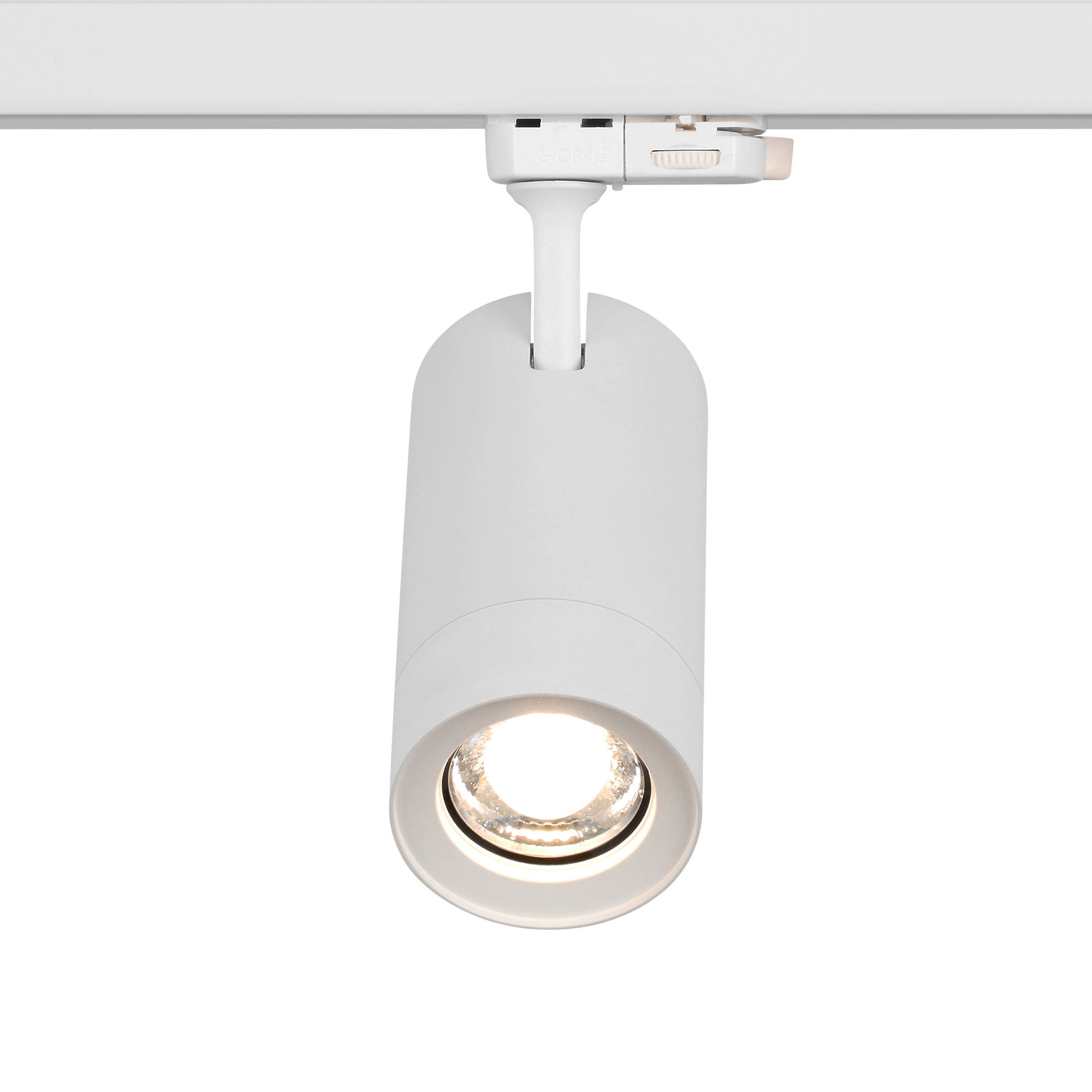

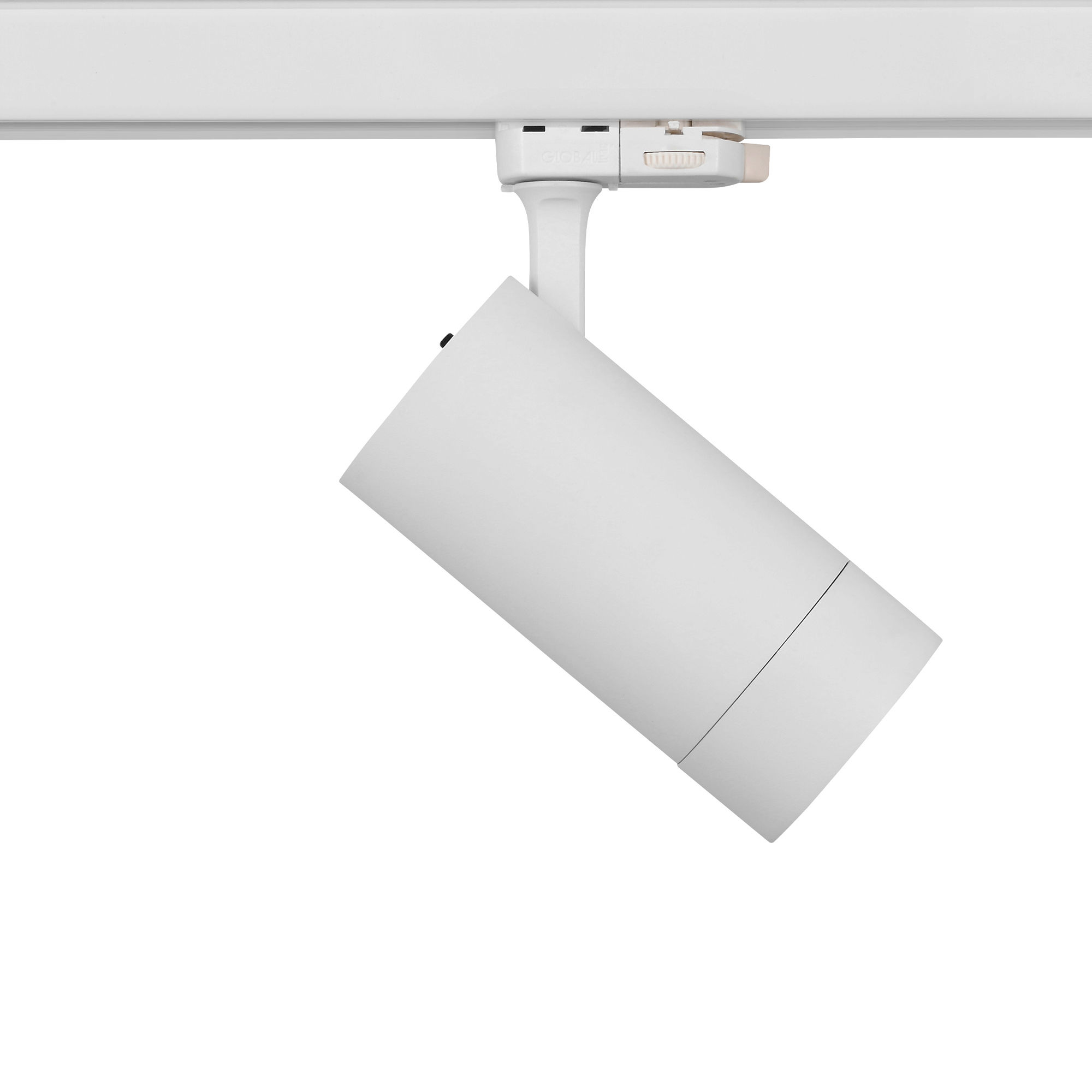

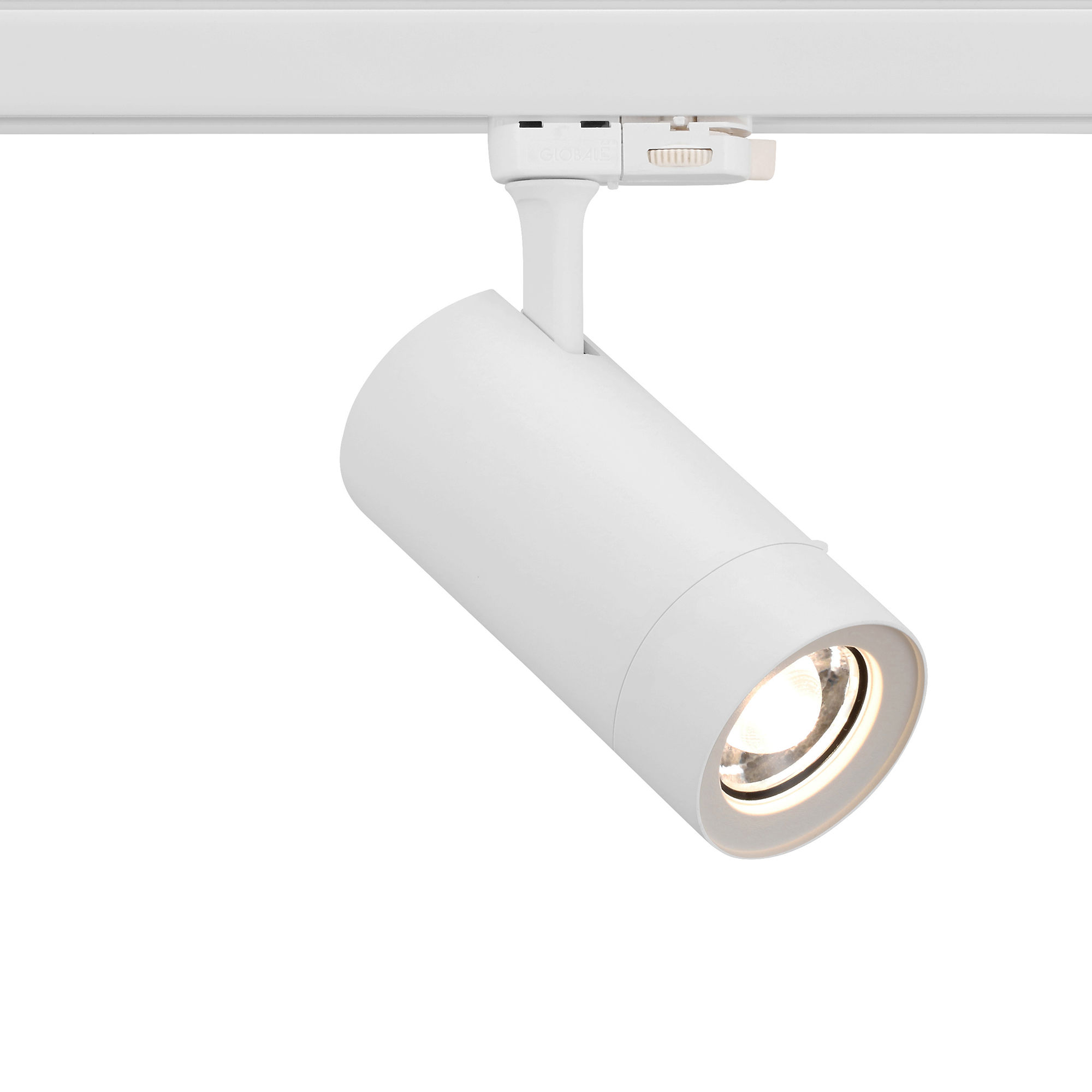

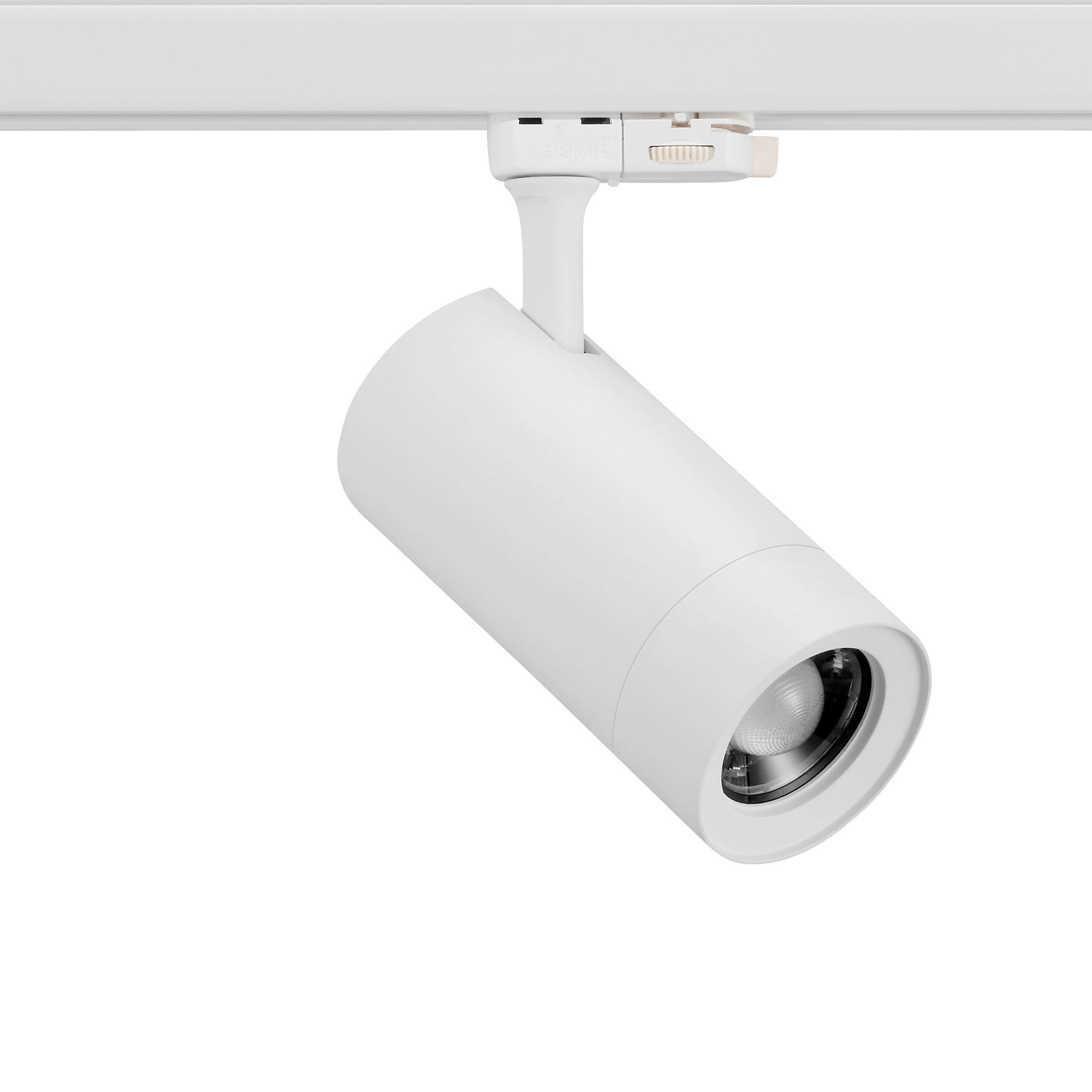

Lenzo L Three Circuit Track Light 940 18-50° Built-In Dimmer White 30W 4000K Cool White

Description

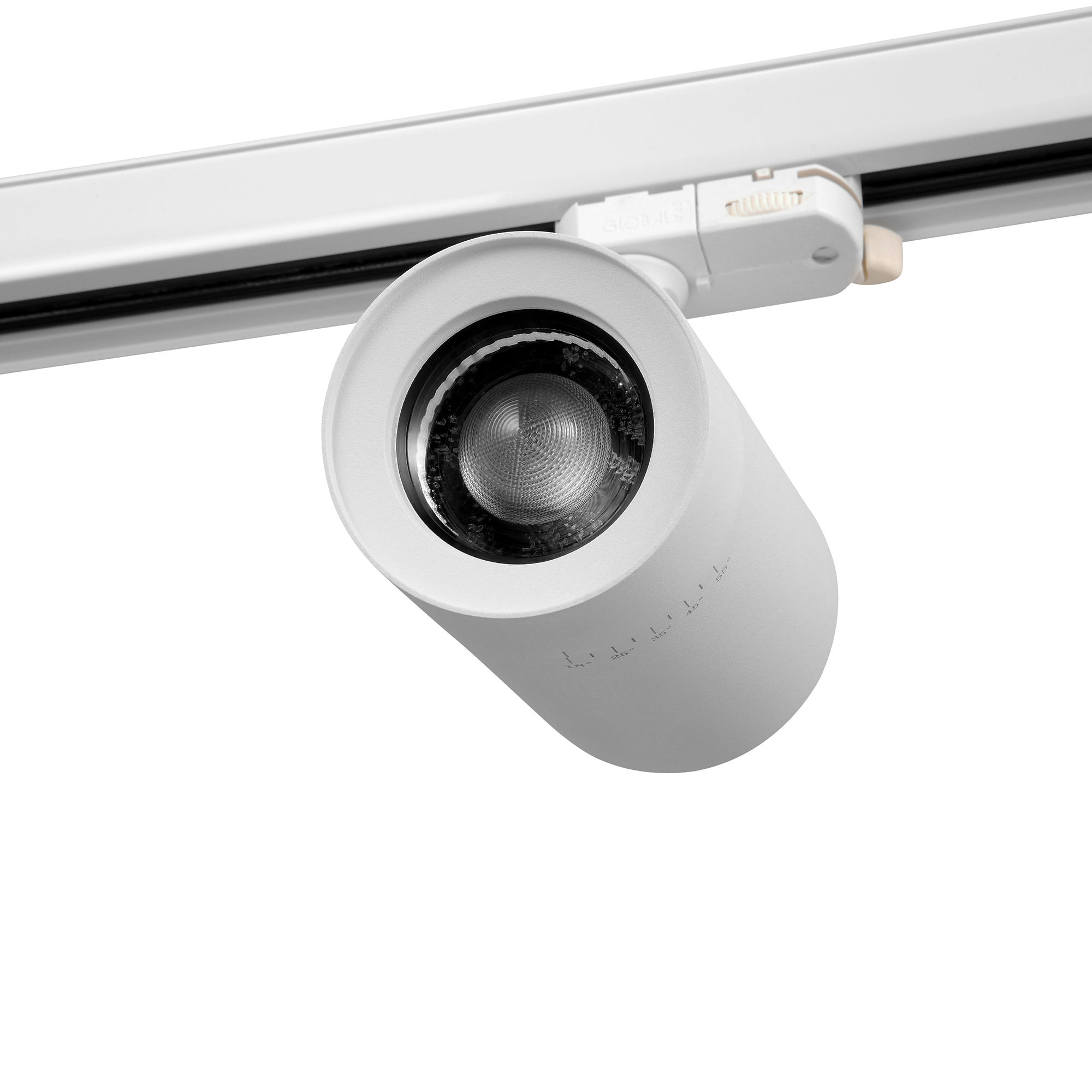

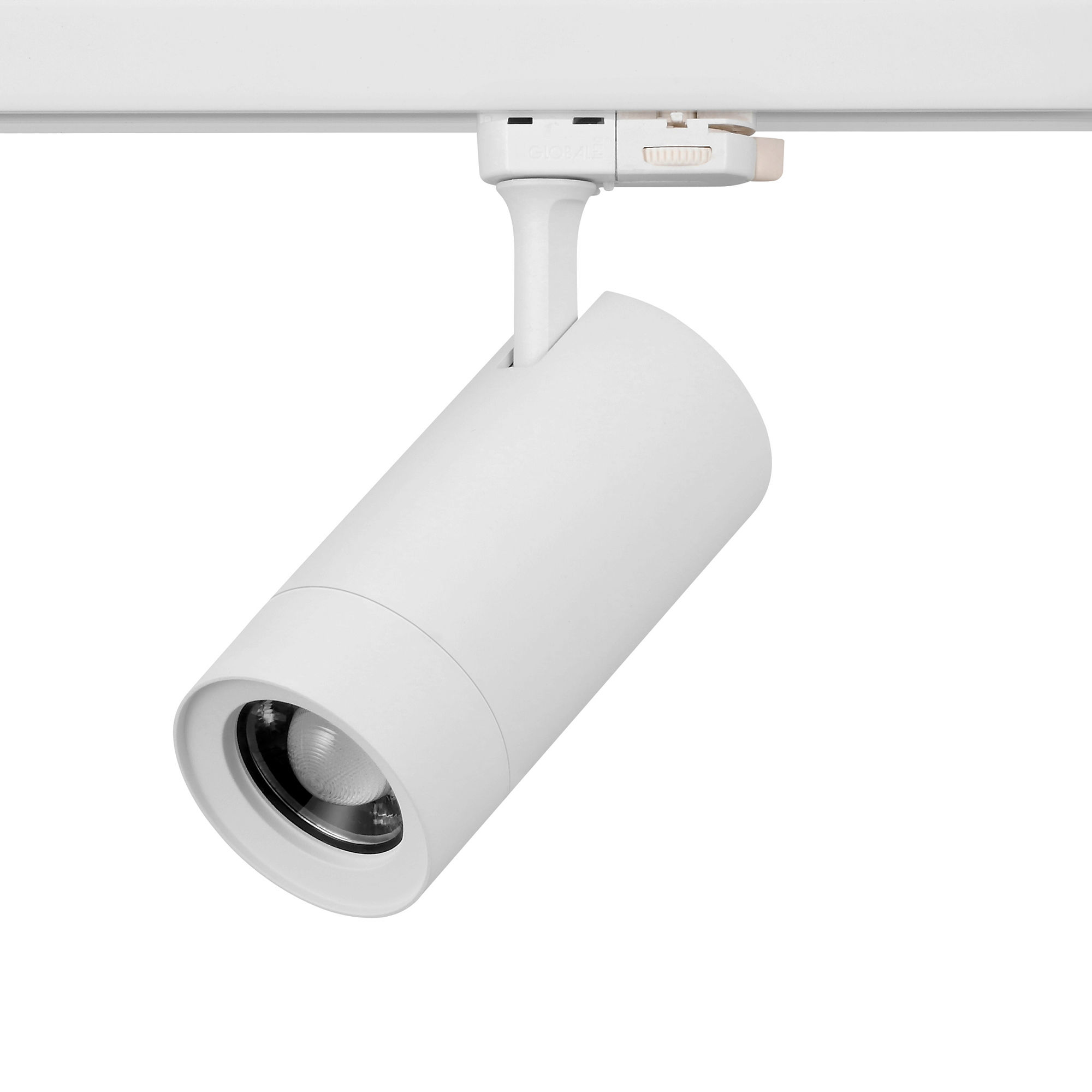

The new Lenzo Track Light Spotlight enhances the Sylvania track spot range with a simple and slick integral design fixture, with no driver box, no visible screws and a full flexible beam angle setting. The Three Circuit Track Light fixtures emit extremely precise light beams due to the high-quality lens, which can be set from 20° to 50°.

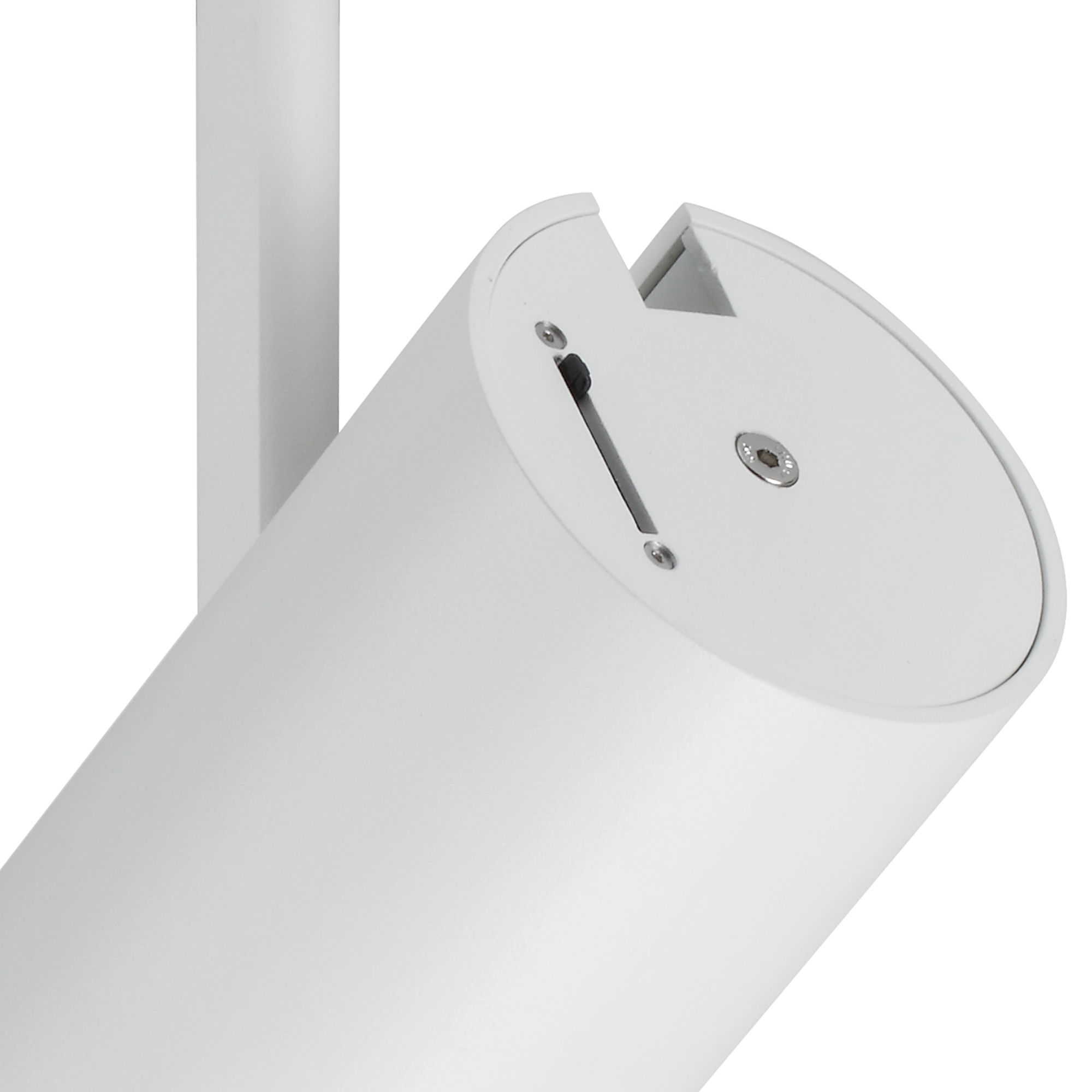

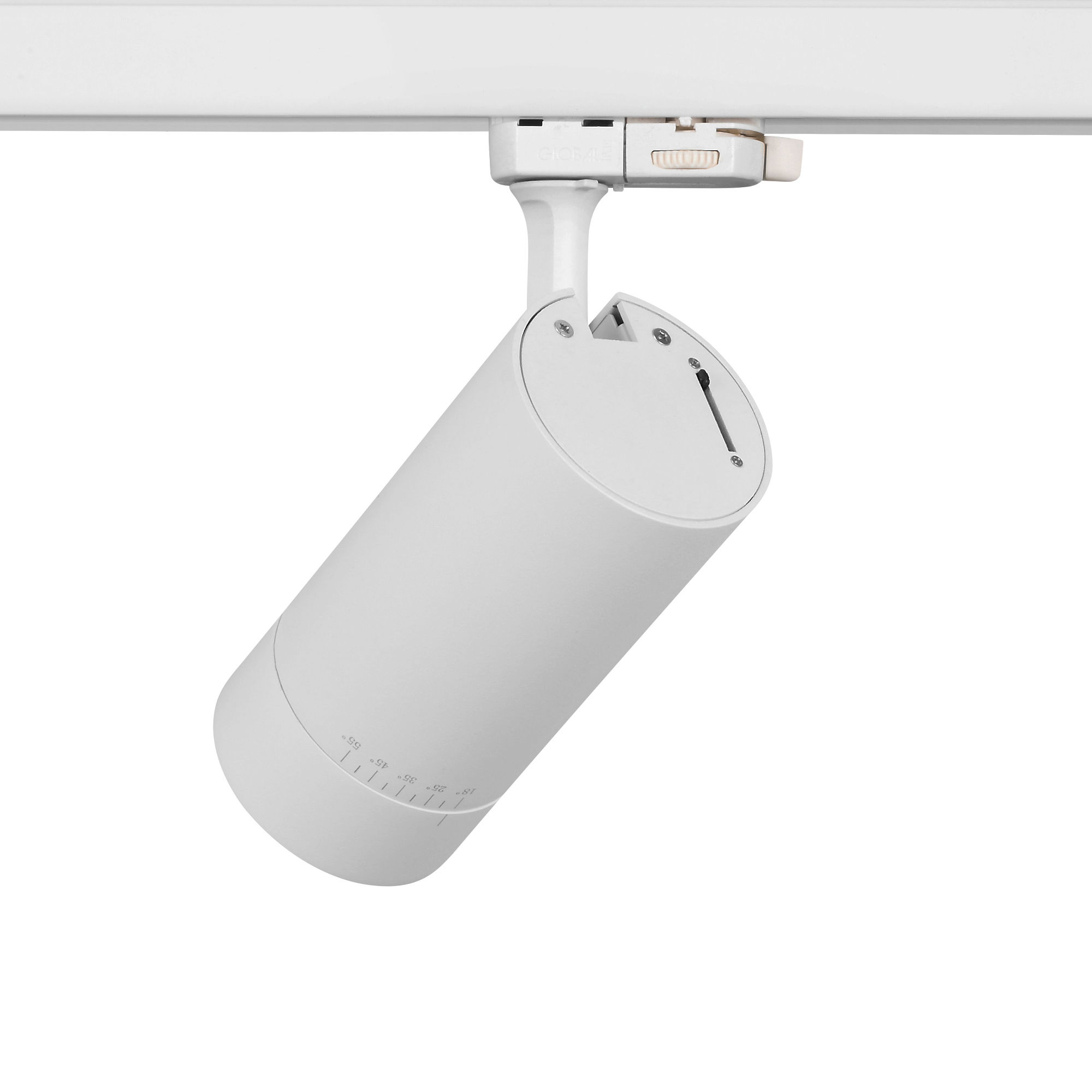

Dimmable with on-board slider dimmer at the back of the fitting.

Three circuit track lighting is a versatile and flexible lighting system commonly used in commercial and residential spaces. The singularity of this lighting track system is that each of the three circuits can be wired and controlled independently, allowing you to have different lighting configurations in the same space. This means you can have multiple sets of lights on the same track, each set with its own switch or dimmer control.

Specification

General
Colour	White
Construction	Aluminium
Dimmable	Yes
IP Rating	IP20
RAL Colour Code	RAL 9016

Dimensions
Diameter	75mm
Height	221mm

Electrical
Maximum Wattage	30W
Voltage	240V

Light Characteristics
Beam Angle	18,50°
Colour Rendering Index	90
Colour Temperature	4000K Cool White
Lumens	2250 lm
Lumens Per Watt	75 lm/W

Technical Drawings

Downloads

Technical

Instructions Lenzo Track

Photometric Data

Lenzo L Three Circuit Track Light 940 18-50° Built-In Dimmer White 30W 4000K Cool White Photometrics

Specification Sheet

Lenzo L Three Circuit Track Light 940 18-50° Built-In Dimmer White 30W 4000K Cool White

Lenzo L Three Circuit Track Light 940 18-50° Built-In Dimmer White 30W 4000K Cool White (Unbranded)

Compare with similar products

	This item Lenzo L Three Circuit Track Light 940 18-50° Built-In Dimmer White 30W 4000K Cool White Q5C71 LENZO 005536 L/W £87.00 excl. VAT £104.40 incl. VAT available to order Add	Lenzo S Three Circuit Track Light 940 15-50° Built-In Dimmer White 15W 4000K Cool White Q5F00 LENZO 005532 S/W £78.00 excl. VAT £93.60 incl. VAT available to order Add	Lenzo L Three Circuit Track Light 940 18-50° Built-In Dimmer Black 30W 4000K Cool White Q5EFE LENZO 005534 L/B £87.00 excl. VAT £104.40 incl. VAT available to order Add	Lenzo S Track Light 930 8-45° Built-In Dimmer Black 15W 3000K Warm White Q5C73 LENZO S 005523 B £92.00 excl. VAT £110.40 incl. VAT only 1 left Add	Lenzo L Three Circuit Track Light 930 18-50° Built-In Dimmer Black 30W 3000K Warm White Q5C74 LENZO 005535 L/B £87.00 excl. VAT £104.40 incl. VAT available to order Add	Lenzo S Three Circuit Track Light 930 15-50° Built-In Dimmer White 15W 3000K Warm White Q5C72 LENZO 005533 S/W £78.00 excl. VAT £93.60 incl. VAT 41 due in Add	Lenzo L Three Circuit Track Light 930 18-50° Built-In Dimmer White 30W 3000K Warm White Q640B LENZO 005537 L/W £87.00 excl. VAT £104.40 incl. VAT available to order Add	Lenzo S Three Circuit Track Light 940 15-50° Built-In Dimmer Black 15W 4000K Cool White Q640D LENZO 005530 S/B £78.00 excl. VAT £93.60 incl. VAT available to order Add	Lenzo S Three Circuit Track Light 930 15-50° Built-In Dimmer Black 15W 3000K Warm White Q640C LENZO 005531 S/B £78.00 excl. VAT £93.60 incl. VAT 16 due in Add
Diameter	75mm	60mm	76mm	60mm	76mm	60mm	76mm	60mm	60mm
Height	221mm	229mm	221mm	275mm	221mm	229mm	221mm	229mm	229mm
Maximum Wattage	30W	15W	30W	15W	30W	15W	30W	15W	15W
Colour	White	White	Black	Black	Black	White	White	Black	Black
RAL Colour Code	RAL 9016	RAL 9016	RAL 9005	RAL 9016	RAL 9005	RAL 9016	RAL 9016	RAL 9005	RAL 9005
Beam Angle	18,50°	15,50°	18,50°	8,45°	18,50°	15,50°	18,50°	15,50°	15,50°
Colour Temperature	4000K Cool White	4000K Cool White	4000K Cool White	3000K Warm White	3000K Warm White	3000K Warm White	3000K Warm White	4000K Cool White	3000K Warm White
Lumens	2250 lm	1000 lm	2250 lm	720 lm	2250 lm	1000 lm	1925 lm	1000 lm	1000 lm
Lumens Per Watt	75 lm/W	67 lm/W	75 lm/W	48 lm/W	75 lm/W	67 lm/W	64 lm/W	67 lm/W	67 lm/W
