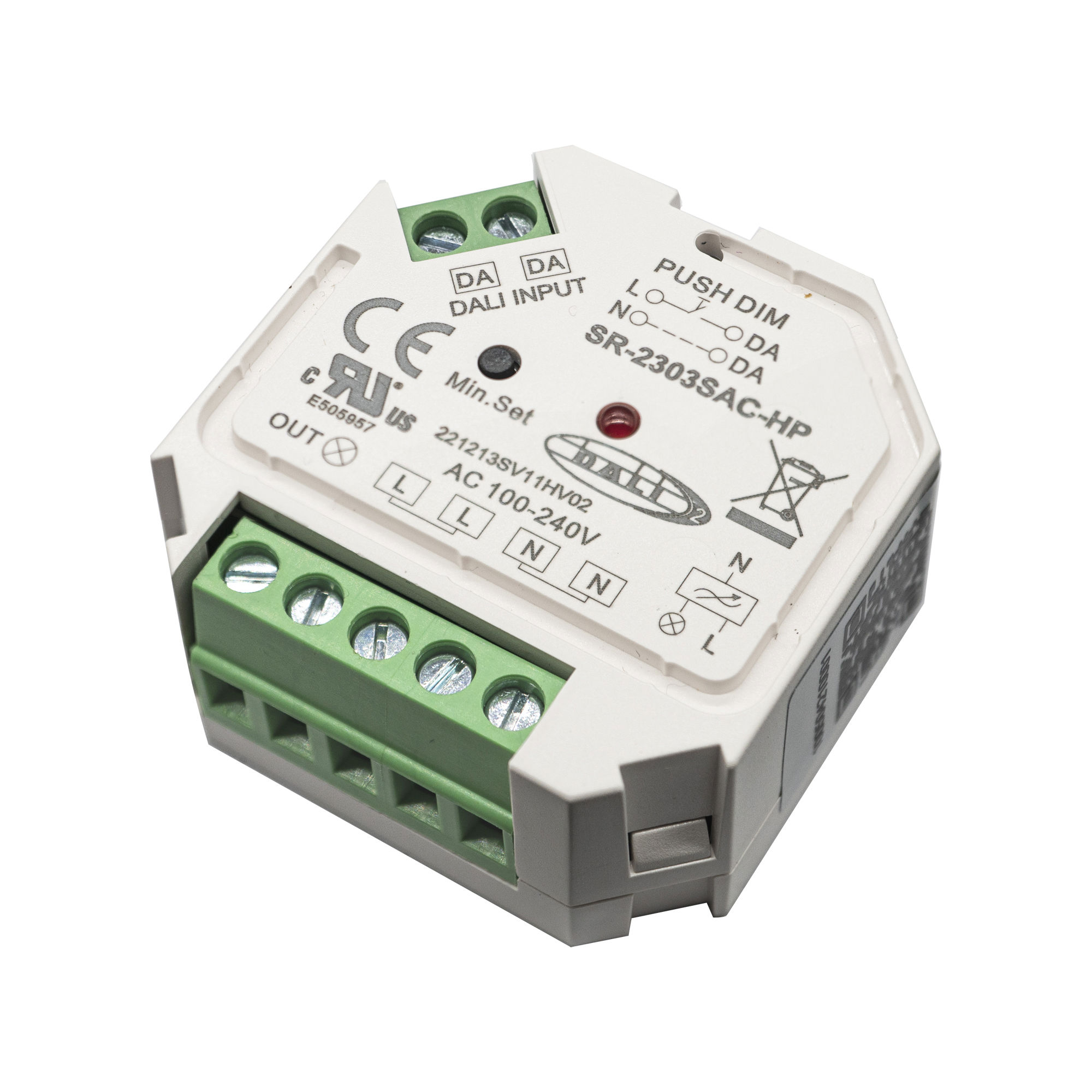

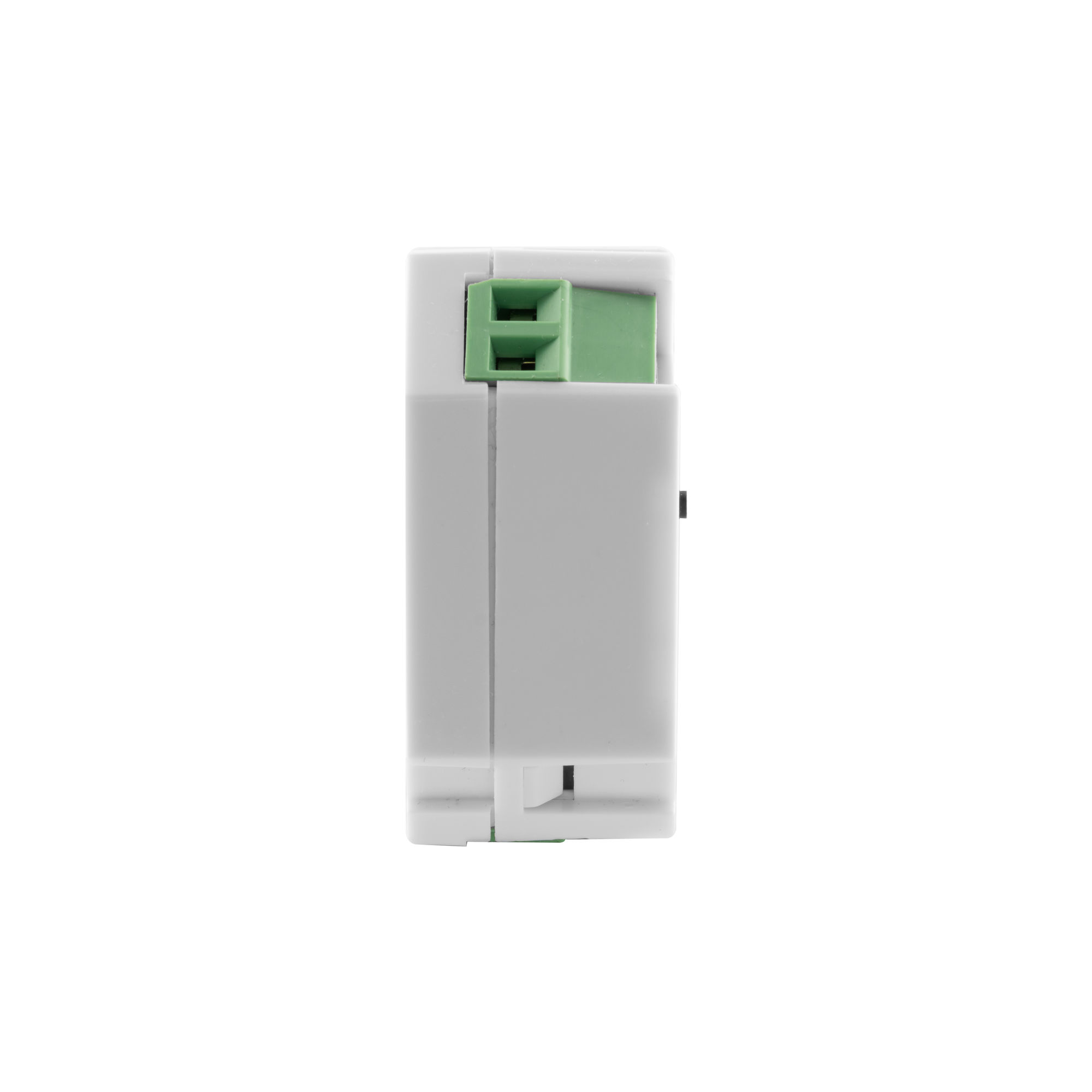

DALI 2 + Push AC Phase Cut Dimmer

• AC phase cut dimmer with both DALI and push switch control interface
• 100-240VAC Wide Input and Output Voltage
• 1 DALI address to control 1 Channel Output, up to 200W
• Input and Output with Screw Terminals, Safe and Reliable
• Trailing edge dimming, supports resistive loads and capacitive loads
• Innovative minimum brightness setting function
• Single Wire Push Switch Input for Push Dim Function
• Great Compatibility with Universal 8V-230V ~ Input Push Switches
• Complies to DALI standards IEC 62386-102, IEC 62386-207
• Compatible with universal DALI systems and master controllers in the market
• To dim and switch single colour dimmable LED lamps, traditional incandescent and halogen lights
• Mini Size, Easy to be installed into a standard 86x86mm wall box
• Waterproof grade: IP20

Safety & Warnings:

• DO NOT install with power applied to device
• DO NOT expose the device to moisture
