Dali Dimmable LED Driver (Constant Current & Constant Voltage)

9W-32W 350mA, 500mA, 700mA

Quicklink Q3AE9

Product Code DCJOLLY DALI

£50.16EX VAT
£60.19INC VAT
£50.16EX VAT
£60.19INC VAT
37 in Stock

Description

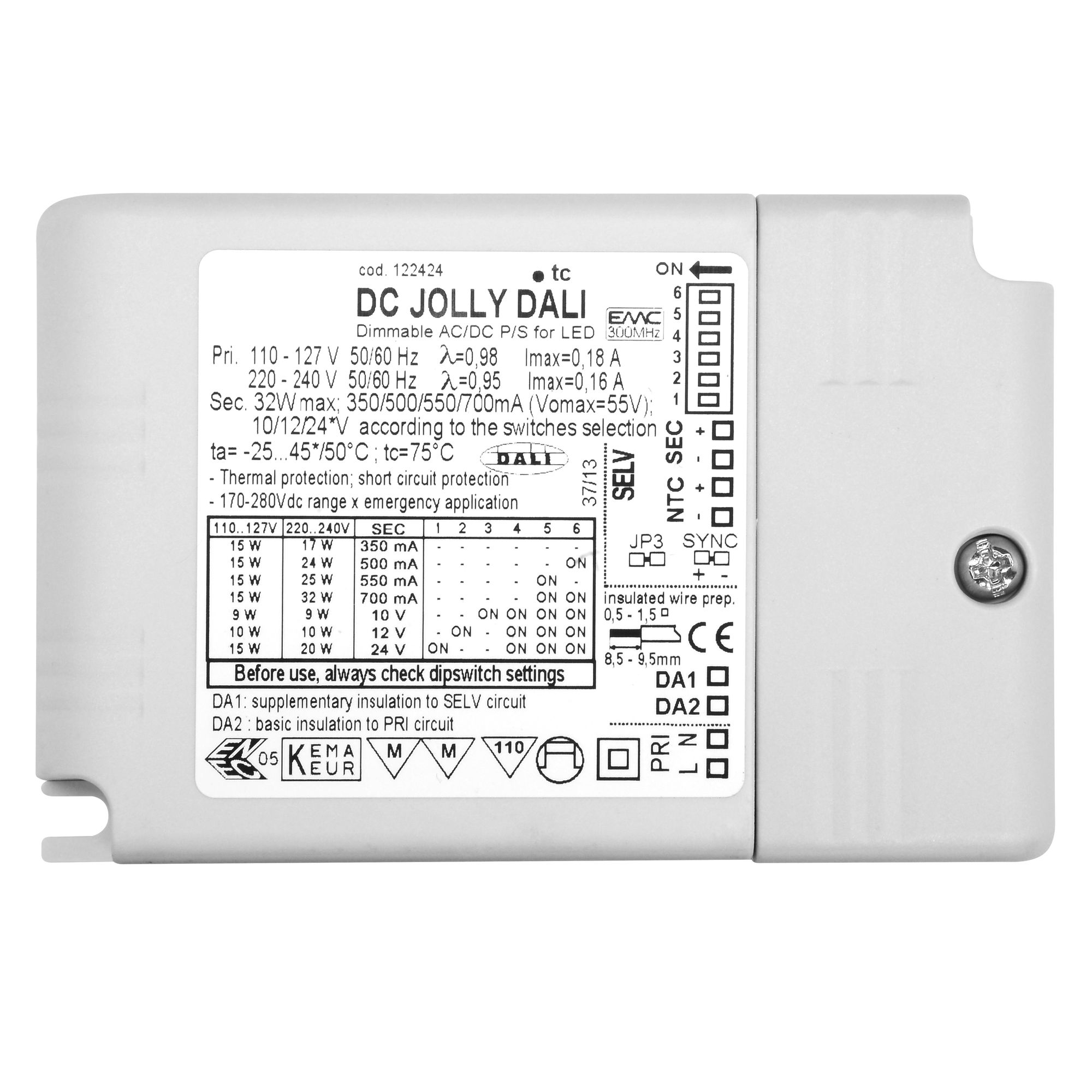

The DCJolly Dali is a revolutionary multi voltage power supply which allows LEDs to be dimmed from any Dali dimming system.

A series of dipswitches gives the user the option to flick the output to any of the following voltages (and maximum loads):

350mA (15W), 500mA (22W {15W @ 120V}), 700mA (25W {15W @ 120V}), 10V (9W), 12V (10W), and 24V (20W {15W @ 120V}).

Specification

General
Colour	White
Construction	Plastic
Dimmable	Yes


Dimmable	Yes

Dimensions
Depth	21mm
Length	100mm
Width	65mm

Electrical
Amperage	350mA, 500mA, 700mA
Maximum Wattage	32W
Transformer	Electronic
Voltage	10V, 12V, 24V

Downloads

Catalogues

LED Power Supply Catalogue

Technical

DC JOLLY DALI Technical

Series Wiring

Specification Sheet
