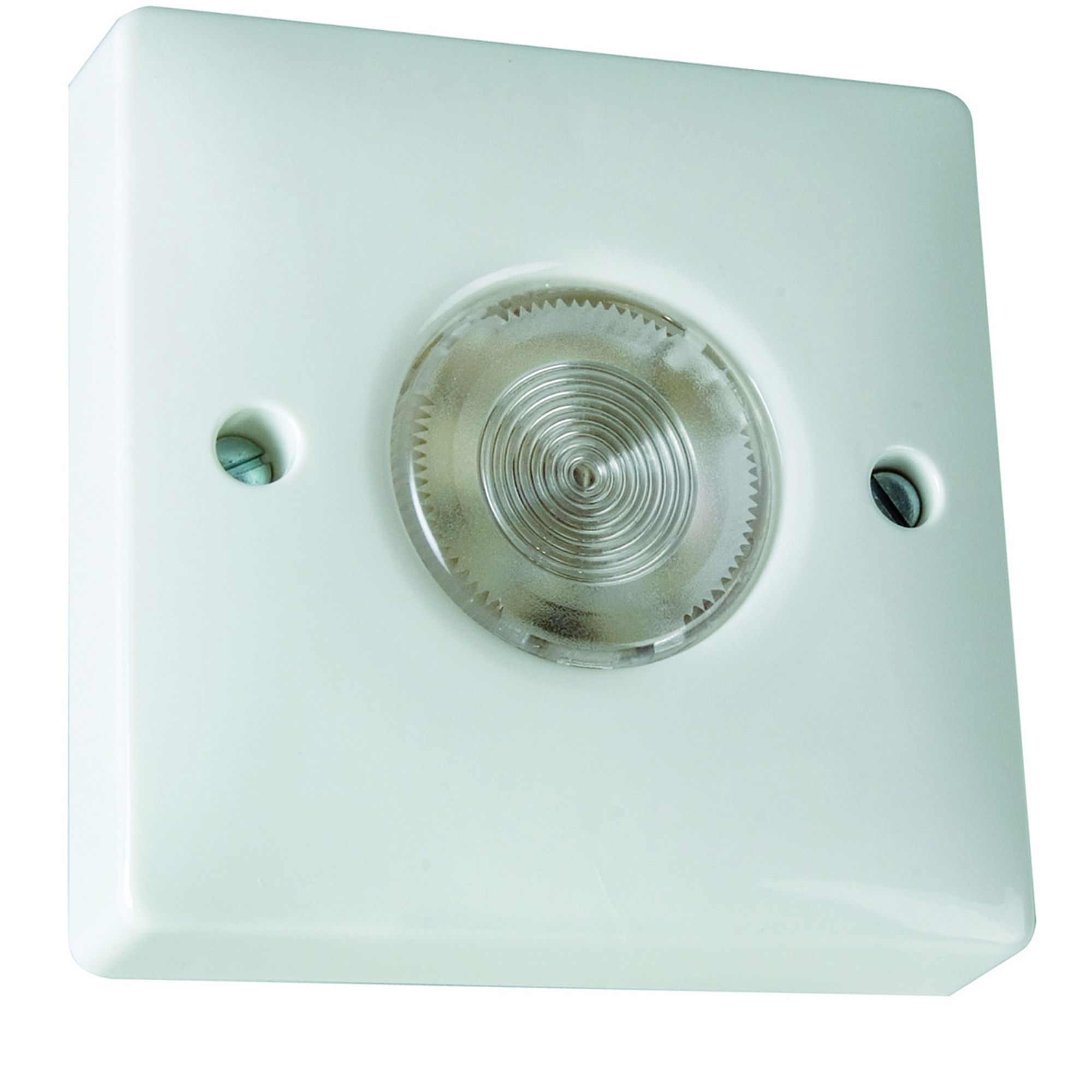

Electronic Time Delay Switch

Slave White

Quicklink Q1CCE

Product Code TIMELAG DSSN

£31.34EX VAT
£37.61INC VAT
only 3 left

Description

This Electronic Time Delay Switch Slave Unit is for use with one Electronic Time Delay Switch in multiple position switching locations (up to 10 can be used).

For more information, please click on the technical tab.

Specifications

Operating Temperature: -10°C to 40°C
Permissible Loads: Filament lamps - 1.5kW, Low voltage - 20-200W, Resistive - 2kW
Standby Consumption: Less than 2 VA
Minimum Depth of Wall Box: 16mm

Specification

General
Colour	White
Construction	Plastic
IP Rating	IP00


Compliance	73/23/EEC, 89/336/EEC
Light ON Time Adjustable	10sec to 10min
Switch Type	Single or Double Gang

Dimensions
Depth	20mm
Height	86mm
Width	86mm

Electrical
Maximum Wattage	1500W
Voltage	240V

Downloads

Specification Sheet

Electronic Time Delay Switch Slave White

Electronic Time Delay Switch Slave White (Unbranded)
