Waterproof Junction Box M20 / M25 / M32 5-Pole Connector Block (140mm)

10 Way - Variable Knockouts Black

Quicklink Q1A7C

Product Code JB 10062215 BLK

£27.10EX VAT
£32.52INC VAT
13 in Stock

Description

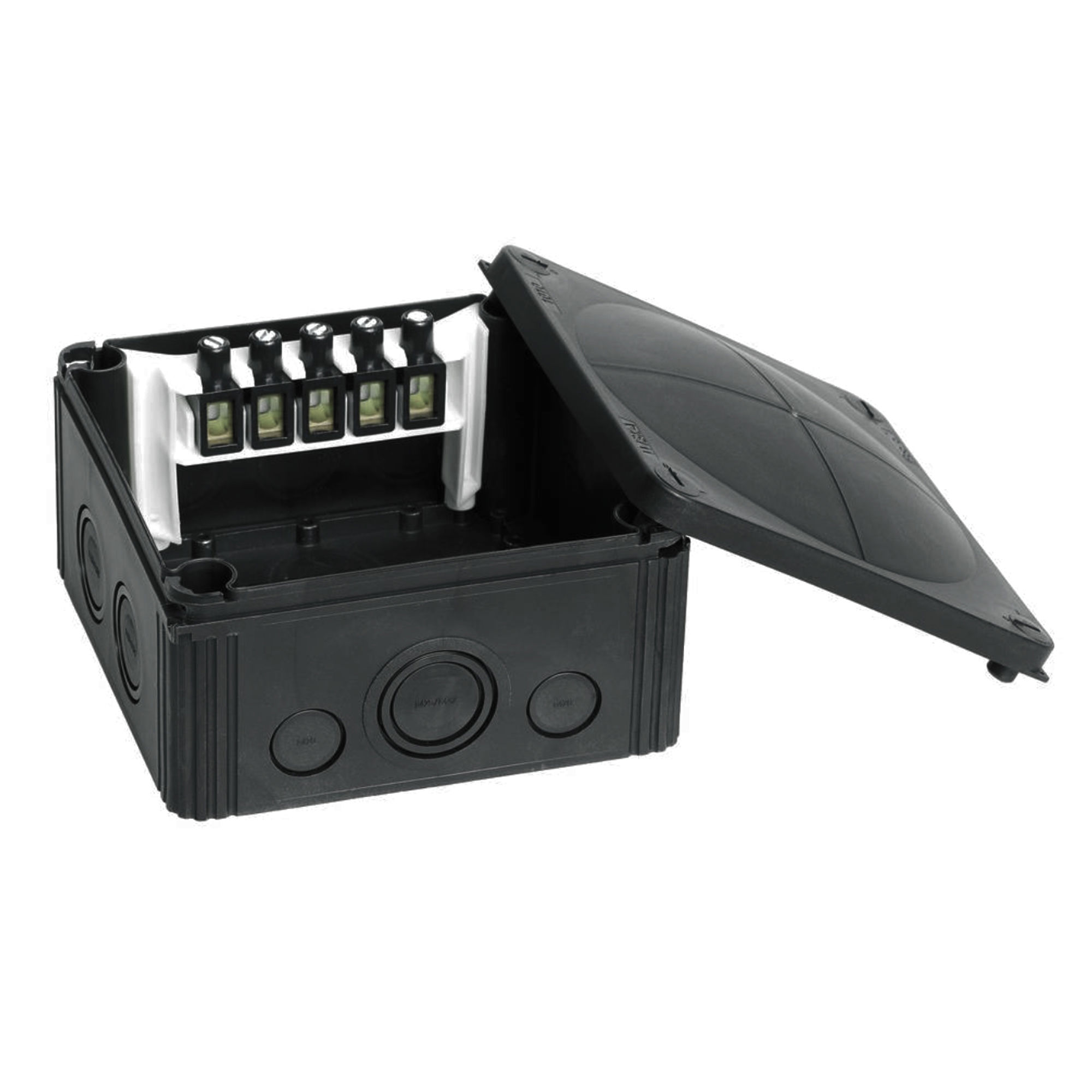

The Waterproof 140mm Junction box COMBI 1010/5 allows up to Ten different cables to be wired through it. The IP66/IP67 rating also allows it suitable for any situation outdoors.

Features

Rated cross section: 10 mm²
Terminals/poles: 5-pole, 10,0 mm²
Fixing: 4 internal openings
Ø cable diameter min: 6 mm
Ø cable diameter max: 21 mm
External dimensions LxWxH: 140 x 140 x 82mm

IP66: using the QUIXX self sealing membrane screw
IP67: using the knockout entry together with ESKV cable gland

Equipment

10 knockouts side 5x M25/M32; 2x M20; 3x M20/M25
4 knockouts in the bottom 2x M25/M32; 2x M20/M25
4 captive cover screws
Including QUIXX EMS self-sealing membrane screw 2x M25; 1x M32
Including terminal block 5-poles, 10mm²

Specification

General
Colour	Black
Construction	Plastic
IP Rating	IP66

Dimensions
Height	82mm
Length	140mm
Width	140mm

Downloads

Technical

Wiska COMBI Series

Specification Sheet
